Setting up JTL-WMS Mobile

Requirements

Before you can use JTL-WMS Mobile, you need to set up JTL-Wawi and JTL-WMS (if you are not already using them).

The JTL-WMS Mobile Server that is needed for using JTL-WMS Mobile is installed automatically during the installation of JTL-Wawi. This ensures that both products are always available in the same version. During installation, a shortcut to JTL-WMS Mobile Server is automatically stored in the Windows Start menu, from which you can start the application.

• You have already downloaded and installed JTL-Wawi. For more information, please go here.
• You have already purchased and activated a licence for JTL-Wawi and JTL-WMS in the Customer Centre. For more information, please go here.
• You have already made the necessary settings for JTL-WMS. For more information, please go here.
• You have already purchased and activated a licence for JTL-WMS Mobile in the Customer Centre.

Setting up JTL-WMS Mobile Server

Step 1: Preparation

If you as a user do not have the appropriate rights, it may be necessary that you execute the JTL-WMS Mobile Server as administrator. In addition, you might need to open the port you’re using with your Windows and/or router firewall first. This step may be necessary especially if you deviate from the standard port 8080. Depending on the hardware and software used, the steps involved in opening the port can vary considerably, which is why we unfortunately cannot offer you any explicit instructions for this. However, the standard port 8080 is usually open for web applications and is unlikely to cause any problems.

Step 2: Configuring the Mobile Server

1. Start the JTL-WMS Mobile Server application. You can find the application in the Start menu. The JTL-WMS Mobile Server management opens.

2. Select the Server tab to create a new server.
3. Select the database profile you want to use.
4. In the Configuration area, first select Name, Tenant and Warehouse from top to bottom.
5. Select HTTP or HTTPS for the Protocol. If you select HTTPS, the Certificate option appears.
6. Select the IP address and the Port via which your Mobile Server can be accessed. Make sure that the port is open. We recommend that you use port 8080 if it is not yet occupied by another application on the same IP.
7. If you have a specific certificate, select it from the list. Otherwise, a new certificate is created by clicking Create certificate.
8. Under Operating mode, choose whether you want to start your server as an Application or as a Windows System service.
9. Click Add server to end the configuration and add a server with the selected settings. The Login dialogue box opens.

9. In the Login dialogue box, enter your login details for JTL-Wawi and click Save.

You have successfully created your Mobile Server and can find it in the Server overview area.

Step 3: Starting the Mobile Server

1. In the Administration of JTL-WMS Mobile Server dialogue box, go to the Status tab.
2. Click on the Start button to start the JTL-WMS Mobile Server. Once the server has been started, the status of the server changes from Stopped to Started.

From now on, you can reach the online interface of JTL-WMS Mobile via the server IP and the specified port (for example http://192.168.2.110:8080) on any device in your company network.

JTL-WMS Mobile Server remembers your settings so that you only have to start the server at the next start.

Step 4: Configuring Auto start

Start new server automatically with Windows

1. Start the JTL-WMS Mobile Server application.
2. Switch to the Server tab.
3. In the Configuration area, first select Name, Tenant and Warehouse from top to bottom.
4. Select HTTP or HTTPS for the Protocol. If you select HTTPS, the Certificate option appears and a certificate must be selected.
5. Select the IP address and the Port via which your Mobile Server can be accessed. Make sure that the port is open. We recommend that you use port 8080 if it is not yet occupied by another application on the same IP.
6. If you have a specific certificate, select it from the list. Otherwise, a new certificate is created by clicking Create certificate.
7. Under Operating mode, select Windows System service.
8. Activate the Start via Windows automatically check box and click Add server.
9. Click Add server to end the configuration and add a server with the selected settings. The Login dialogue box opens.

10. In the Login dialogue box, enter your login details for JTL-Wawi and click Save.

Your Mobile Server will now start automatically the next time you start the system.

Start existing servers automatically via Windows

You can change existing servers that you have previously started manually, so that they start automatically.

1. Start the JTL-WMS Mobile Server application.
2. Switch to the Server tab.
3. In the Server overview area, select the server you want to change.
4. In the Operating mode column, select Windows System service.
5. Activate the check box in the Auto start column.

Your Mobile Server will now start automatically with the next system start.

Step 5: Specifying rights in JTL-Wawi

1. In Menu: Admin > Users/Rights, open the Creating/Editing users, rights and special permissions dialogue box.
2. Select the user or user groups that are allowed to use JTL-WMS Mobile. For more information on user rights, please go here.
3. Go to the Rights area.
4. In the tree structure, navigate to Using Mobile App and activate the check box.
5. Click Save and then close the dialogue box.

Your created users can now use JTL-WMS Mobile.

Installing/Connecting JTL-WMS Mobile App

Installation

To install JTL-WMS Mobile on your device, open your app store and search for JTL-WMS Mobile or click on this link: JTL-WMS.

Alternatively, you can also install the JTL-WMS Mobile App manually if you do not have a Google account, for example. The required installation file can be found here. Copy the APK file contained in the zip file to your Android device and start it via a file manager. You may first grant permission for the installation of apps from sources other than the PlayStore in the security settings. However, if you do not install JTL-WMS Mobile via the app store, automatic updates are not possible. Now you have to accept the permissions that allow JTL-WMS Mobile to access the Bluetooth settings of your device. The download starts and JTL-WMS Mobile is installed.

Login to your JTL-WMS Mobile Server

1. Start the JTL-WMS Mobile App.
2. Click Add/Edit server… and select your server from the list, or enter the server address of your newly created Mobile Server.
3. Enter your user name and password.
4. Click Login.

You are now successfully connected to your Mobile Server and can use JTL-WMS Mobile.

Login to your JTL-WMS Mobile Server with a QR code

As an alternative to the usual registration process, you can also connect your JTL-WMS Mobile Server via a QR code.

1. Start the JTL-WMS Mobile Server application.

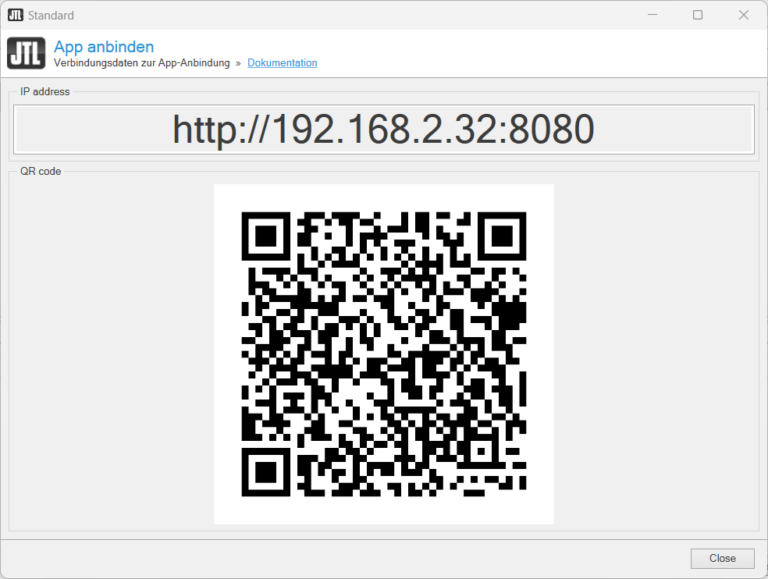

2. Go to the Status tab and click Bind in the row of your server. The Binding App dialogue box opens.

3. In the Binding App dialogue box is a QR code with which you can connect your device directly to the Mobile Server.

4. Start the JTL-WMS Mobile App.

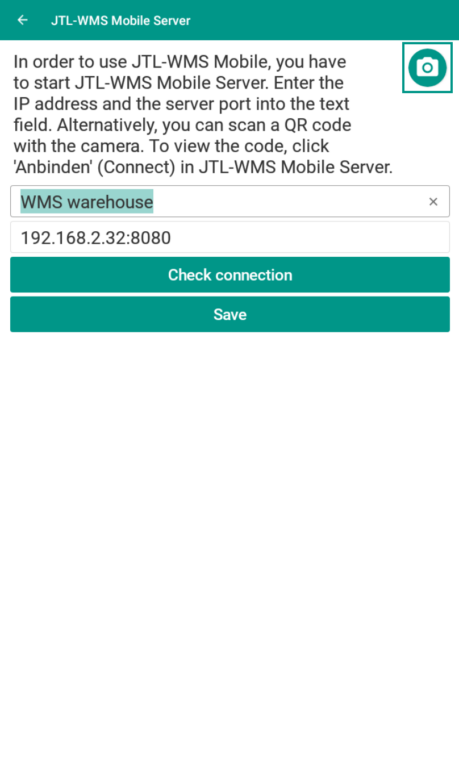

5. In the login window, select the camera icon and scan the QR code from the Binding App dialogue box.

6. Enter your user name and password.
7. Click Login.

You are now successfully connected to your Mobile Server and can use JTL-WMS Mobile.

Switching servers

If you work with different servers, e.g. in different warehouses, you can change the server IP address in the settings.

Go to the menu and select Settings > Servers.

Either change the displayed IP address by entering it using the keyboard or select a previously used address from the drop-down menu.
